Custom Shower Remodel (Palatine, IL)

Scope of work

Full demolition: old tile, vanity cabinet, toilet, shower door (reinstalled later)

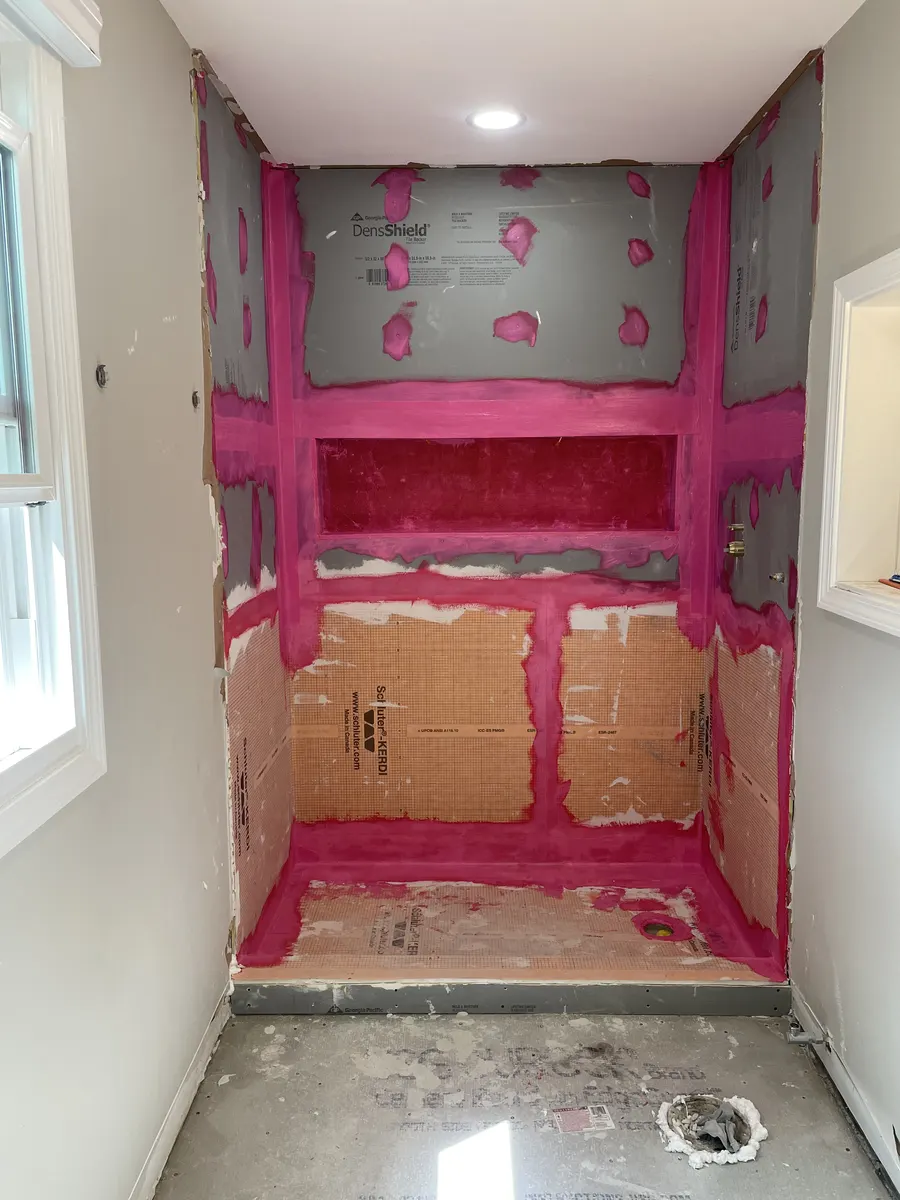

Waterproofing system + sealed corners and penetrations
Custom shower pan
Wall tile + shower floor tile with curb/threshold
Niche (recessed shelf)
Grout & silicone
Reinstall: shower door, toilet, vanity, towel bars & accessories

Highlights

Full waterproofing Custom shower pan Clean tile alignment Recessed niche Silicone joints

Finished custom shower with dark blue subway tile, niche and brass hardware — Custom shower rebuild in Palatine, IL — tile, niche, waterproofing & reinstall.

Project facts

Timeline

~1–2 weeks (includes cure/dry times)

Approx. size

Standard shower rebuild + bathroom floor (varies by layout)

Workmanship

Warranty available (set your standard policy)

Materials

Cement board/backer, waterproofing membrane, thinset mortar, grout, silicone sealant, shower pan build materials, tile, transitions/trim.

Best for

Homeowners who want a shower rebuild done the right way — with proper waterproofing, correct slope/drainage, clean tile layout, and tidy finishing details.

Get an Estimate Call / Text

Tip: for future projects, update the 3 lines marked EDIT — and the page is ready.

Photos

Tap any photo to open fullscreen. Swipe/drag to browse.

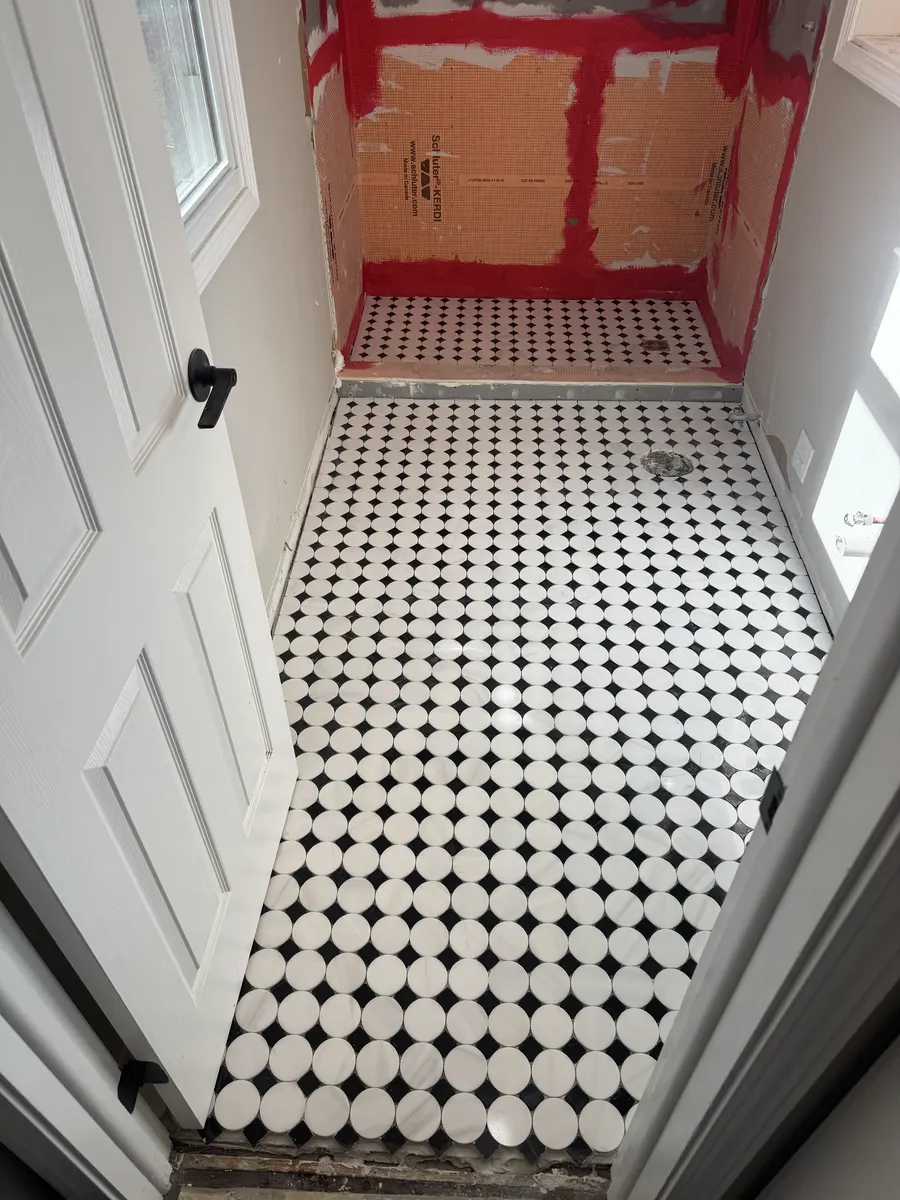

Bathroom floor tile installation in progress

Bathroom floor tile close-up during installation

Wall tile installation in progress with spacers

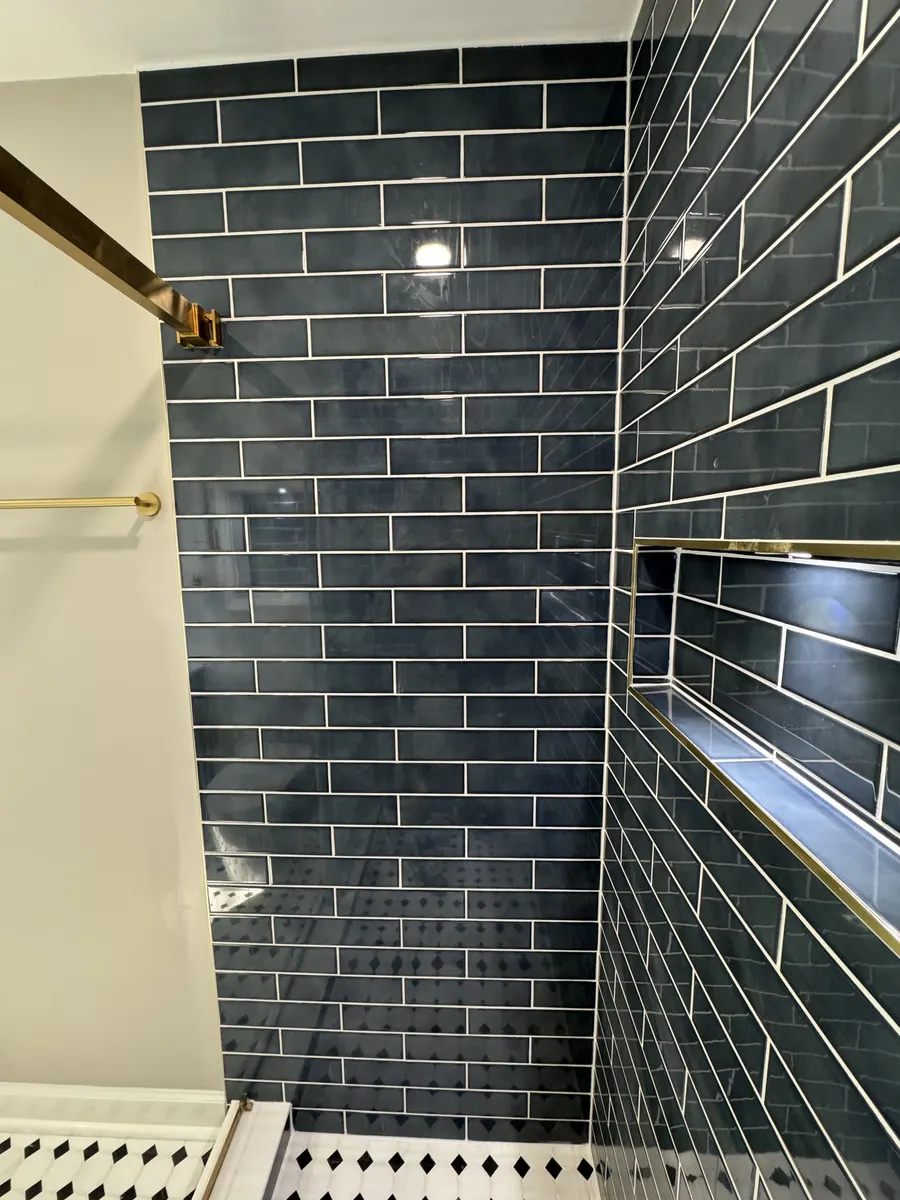

Shower niche detail with dark blue subway tile

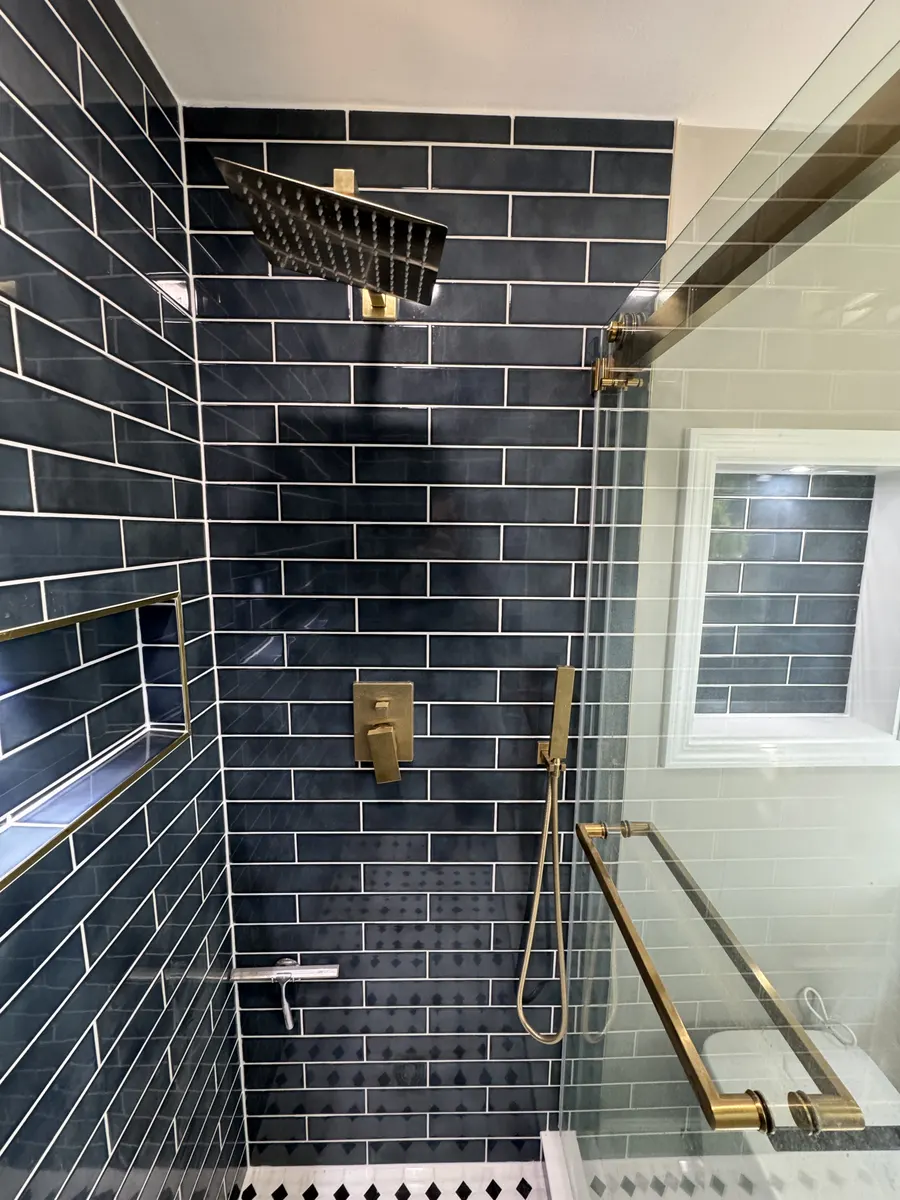

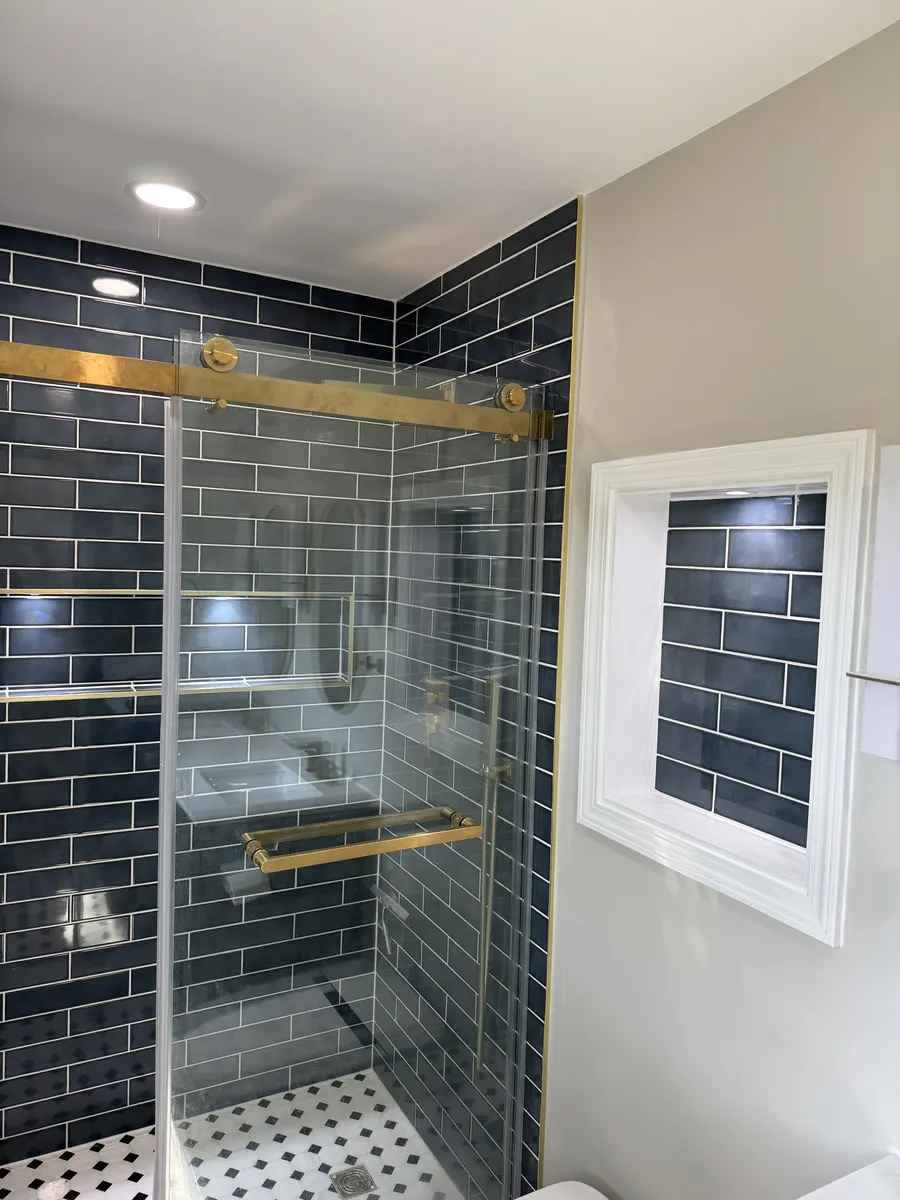

Finished shower with glass door and brass hardware

Finished bathroom view with tiled shower

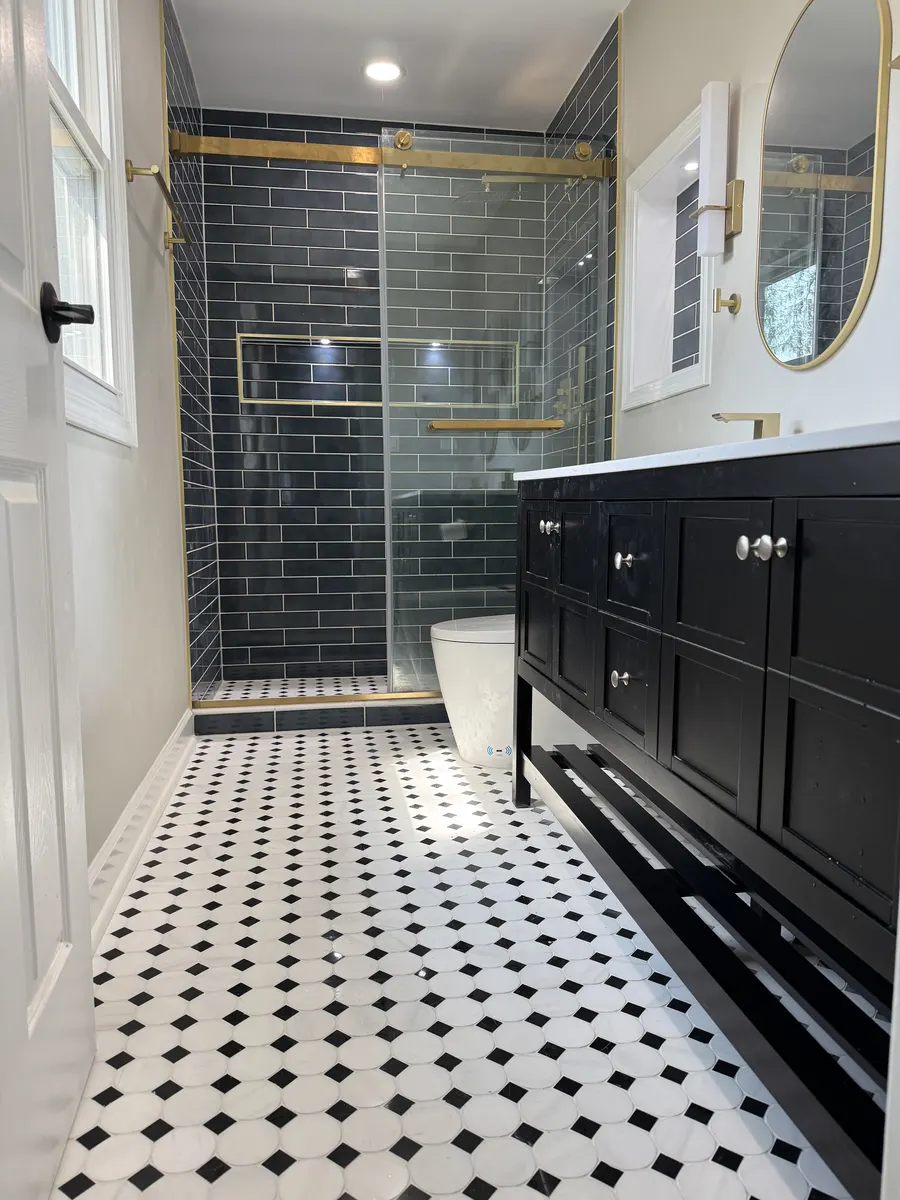

Finished bathroom view with shower and vanity

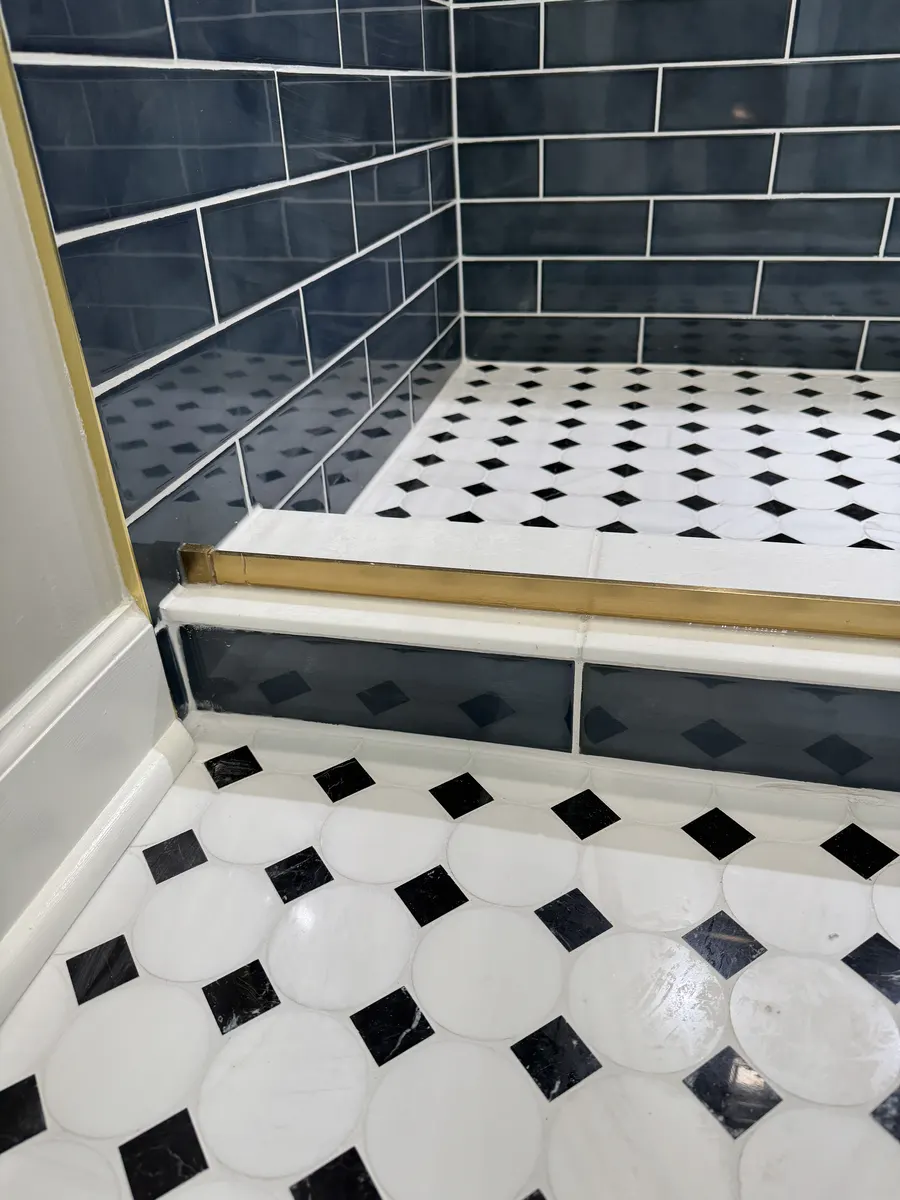

Finished bathroom floor tile with shower threshold

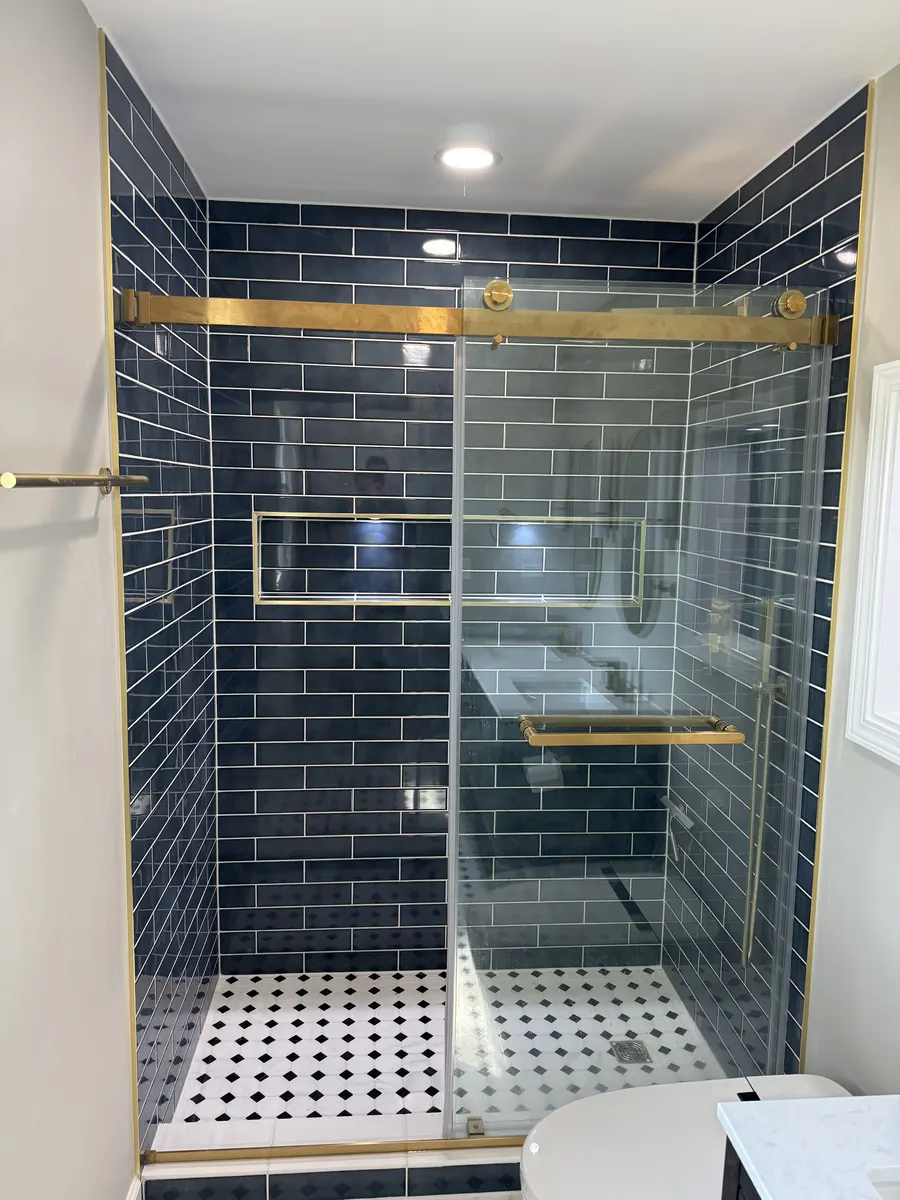

Top view of finished shower floor and niche

Project notes

This project started as a complete shower rebuild in an older bathroom. The existing tile, shower enclosure, vanity, toilet and fixtures were fully removed to expose the structure and allow us to rebuild everything correctly from the ground up.

One of the key goals was long-term reliability. We installed a full waterproofing system, paid special attention to corners, penetrations and transitions, and built a custom shower pan to ensure proper slope and drainage.

The client chose a bold dark-blue subway tile paired with a classic patterned floor. We carefully aligned all grout lines, framed a recessed niche for storage, and finished the installation with clean grout and silicone joints.

After the tile work was completed, we reinstalled the shower door, toilet, vanity and accessories, bringing the space back together as a clean, functional and modern bathroom.

Get an Estimate Call / Text Back to Recent Work

Bathroom remodel FAQ

Quick answers to common questions about shower rebuilds, waterproofing, tile, and timelines.

How long does a full shower rebuild take?

Most full rebuilds take about 1–2 weeks depending on demolition, waterproofing steps, tile complexity, and cure/dry times. If there are structural surprises behind old tile, timeline can extend.

Why is waterproofing so important (even under tile)?

Tile and grout are not fully waterproof. A proper waterproofing system protects framing and subfloor from moisture, helps prevent leaks, mold, and long-term damage.

Do you build custom shower pans?

Yes. Custom pans allow correct slope and drainage and help fit non-standard layouts. Proper slope is one of the most important “invisible” quality factors in a shower.

What affects the final cost the most?

Tile choice/format, layout complexity (niches, patterns), waterproofing scope, and demolition conditions. The best way is a quick site visit or detailed photos + measurements.

Can you match grout lines and keep tile layout clean?

Yes — layout planning is part of the process. We aim for clean symmetry, consistent spacing, and a finished look with tidy grout and silicone joints in the right places.
